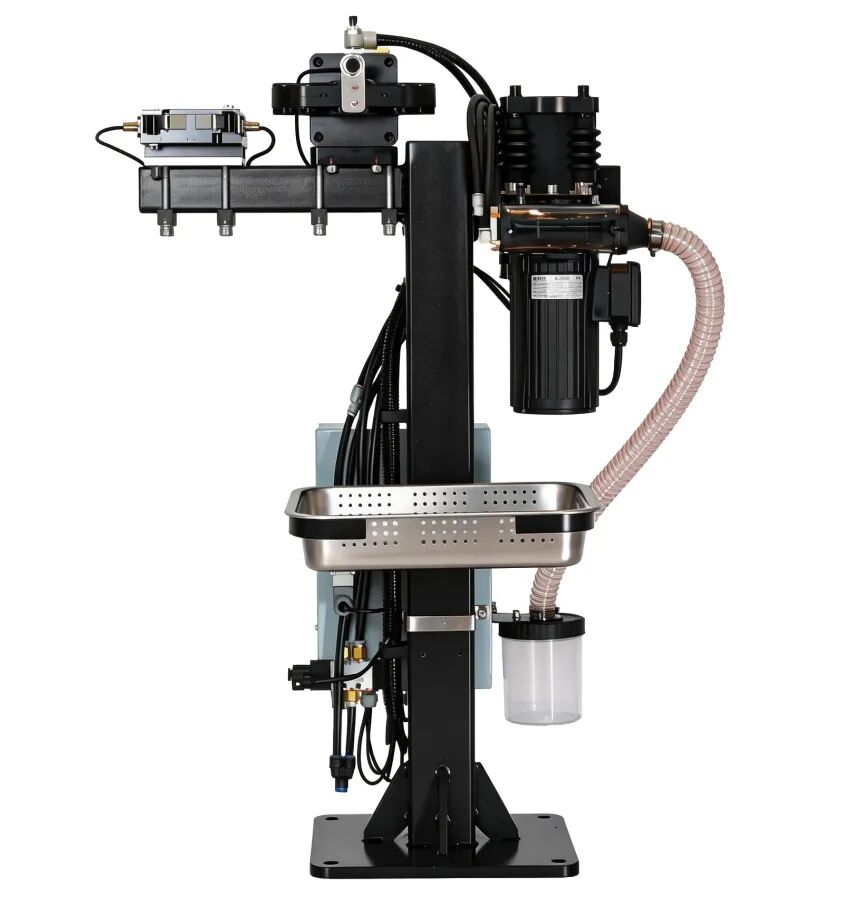

On resistance spot welding lines for body‑in‑white (BIW) production, dressing and replacing weld gun electrode caps are critical operations for ensuring weld quality and improving production cycle times. As production lines become increasingly automated, the traditional manual tip‑change model is gradually becoming a bottleneck that constrains throughput and quality consistency. To further address these line‑level pain points, reduce labour costs, and boost cycle times, Qiaotian Intelligent, building on extensive in‑line validation, is proud to launch the All‑in‑One Dresser & Tip Changer 2.0.

Compared with the previous generation, the 2.0 version not only delivers comprehensive reliability enhancements across the entire unit, but also introduces two new optional modules – a water‑extraction unit and a dressing‑inspection vision unit – to tackle the core pain points of weld‑gun water spray and tip‑face dressing quality verification at a higher level of automation.

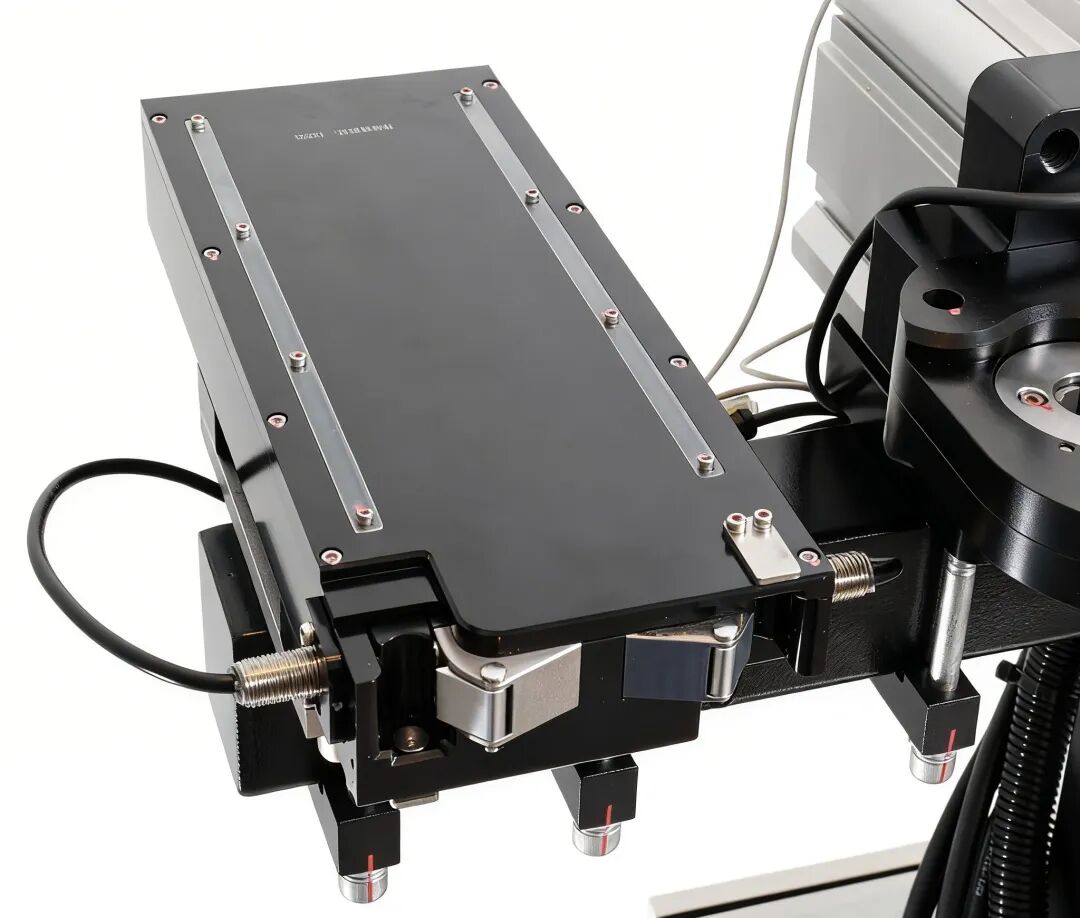

During the tip‑fitting stage, the 2.0 version introduces a flexible magazine‑loading design. This effectively prevents hard collisions between the weld gun and the magazine during high‑speed automated operation, thereby avoiding damage. It not only extends the service life of the magazine but also ensures smooth tip‑change cycles.

3. Angle‑Controlled Removal Mechanism – Protecting Electrode Shanks

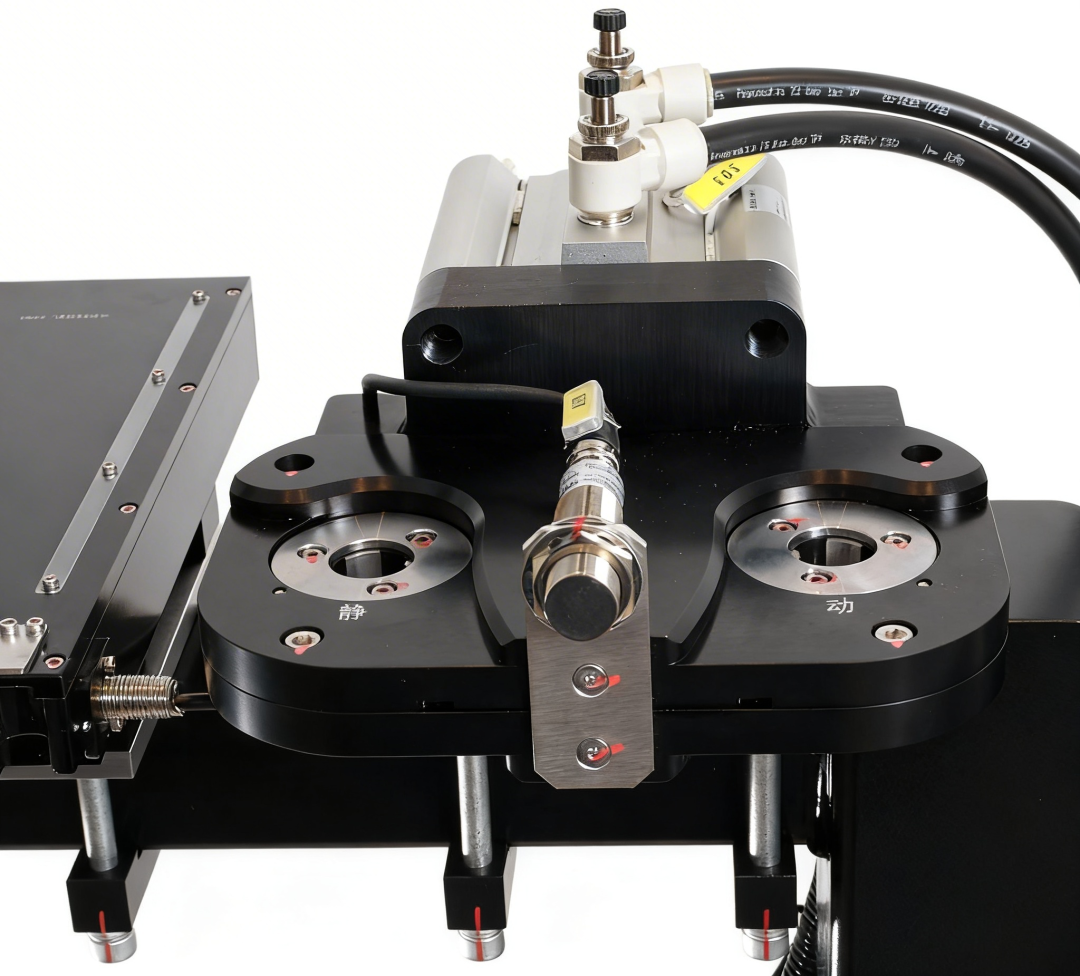

Electrode shank wear is a major cost‑control challenge on production lines. The 2.0 version innovatively incorporates an angle‑controlled removal mechanism that protects the shank from unnecessary abrasion. During cap removal, the mechanism precisely controls the force angle, avoiding scratches or deformation on the electrode shank. This extends shank service life and reduces consumable costs.

Core Upgrade 2: Optional Water‑Extraction Module – Say Goodbye to "Flooding"

This module rapidly evacuates the cooling water from the weld gun's water circuit just before the cap‑removal action, ensuring that no water is expelled at the moment of removal. This greatly improves the on‑site working environment and optimises the unit's operating conditions. More importantly, a dry interface effectively enhances the seating and fit of new electrode caps, thereby significantly boosting the overall tip‑change success and yield rate.

Core Upgrade 3: Optional Vision Inspection Module – Smarter Quality Control

Immediately after each dressing cycle, this unit captures high‑definition images of the cap face and analyses them using vision algorithms. It can accurately detect whether the face is flat and whether there are burrs, defects, or other quality issues. If a dressing defect is identified, the system instantly triggers an alarm or issues a re‑dressing command. The addition of this module elevates the line's intelligence and automation to a new level, effectively stabilising weld quality and achieving "front‑loaded" and "unmanned" quality assurance.

The Qiaotian All‑in‑One Dresser & Tip Changer 2.0 is more than just a stack of new features – it represents a deep understanding of and a direct response to real‑world production‑line challenges. From a more reliable removal and fitting mechanism, to the water‑extraction module that solves the on‑site spraying issue, to the vision inspection unit that ensures dressing quality – Qiaotian Intelligent remains committed to providing customers with more stable, more intelligent robotic end‑effector system solutions.
