As OEMs are required to handle multi‑model changeovers, steel‑aluminum mixed‑body construction, new‑energy‑platform integration, and increasingly complex joining processes on a single production line, the line must not only run fast – it must also switch smoothly and scale readily.

In today’s cycle times – often measured in tens of seconds – the end‑of‑arm tooling is no longer just a single weld gun or gripper. Spot welding guns, aluminum welding guns, SPR self‑piercing riveting tools, FDS flow‑drill screwdriving tools, material‑handling grippers, and vision inspection modules are now appearing frequently and interchangeably within the same welding cell.

If each process were assigned its own dedicated robot, investment and floor‑space costs would skyrocket. Relying on manual tool changeovers, on the other hand, simply cannot keep up with cycle times of a few tens of seconds. This is precisely where the Qiaotian QT‑650S 800kg heavy‑duty robotic tool changer comes into play.

1.Why 800kg? The engineering logic behind heavy‑duty capacity

Flexibility in a body‑in‑white welding line is far more than “equipping more tools.” The real challenge lies in this: tools are heavier, processes are more numerous, and changeovers are more frequent.

When a robot operates at high speed, makes emergency stops, or performs aggressive attitude changes, the end‑of‑arm system is subjected not only to static weight, but also to substantial dynamic moments generated by acceleration, tool center of gravity, and process reaction forces. For joining processes like SPR and FDS, the tool also incorporates multiple interfaces – for feed studs, power, pneumatics, cooling, communications, and status feedback – which raises system complexity exponentially.

The QT‑650S belongs to Qiaotian’s heavy‑duty robotic tool changer series, rated at 800kg payload and directly compatible with mainstream 300–800kg‑class robots.For automotive welding customers, this load capacity translates into greater process adaptability.It can securely support large‑format spot welding guns, steel‑aluminum hybrid joining tools, heavy‑duty grippers, and complex inspection devices, providing a reliable end‑connection foundation for body‑in‑white sub‑assembly, framing, rework, and material handling.

2.±0.01mm: Every changeover returns to the exact position

In body‑in‑white welding, repeatability directly affects weld quality, gripping posture, and process stability. The Qiaotian QT‑650S tool changer delivers repeatability up to ±0.01mm.This means that after repeated tool changes on the same robot, the system maintains exceptionally consistent positioning.

For the plant engineer, high repeatability is not an isolated specification. It must work in concert with tool‑stand locating, robot path planning, cable‑harness routing, and commissioning procedures. The Qiaotian heavy‑duty tool‑changing solution integrates automatic docking, tool‑present detection, lock/unlock status feedback, and modular interface layouts – helping customers reduce setup complexity and improve long‑term operational stability.

3.Modular expansion: Full adaptability from spot welding to SPR/FDS

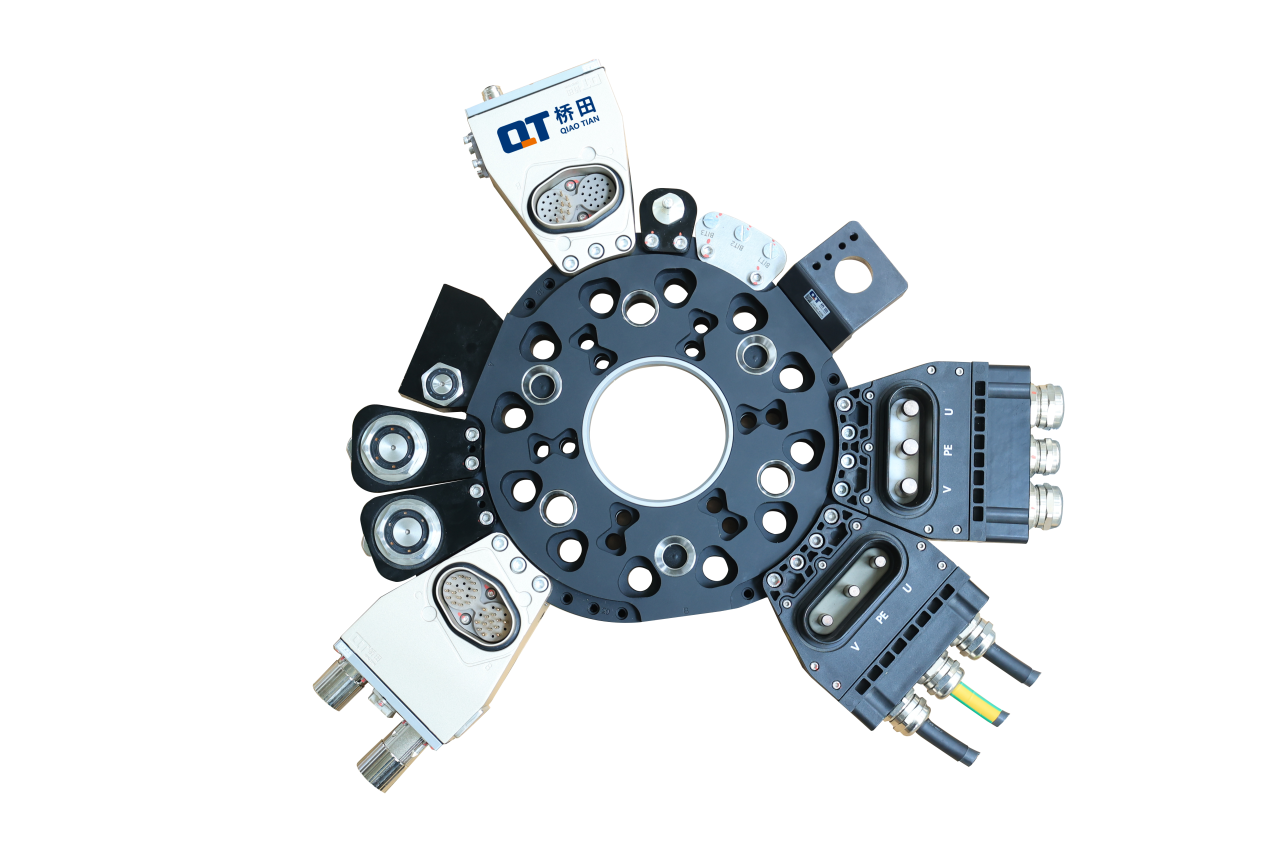

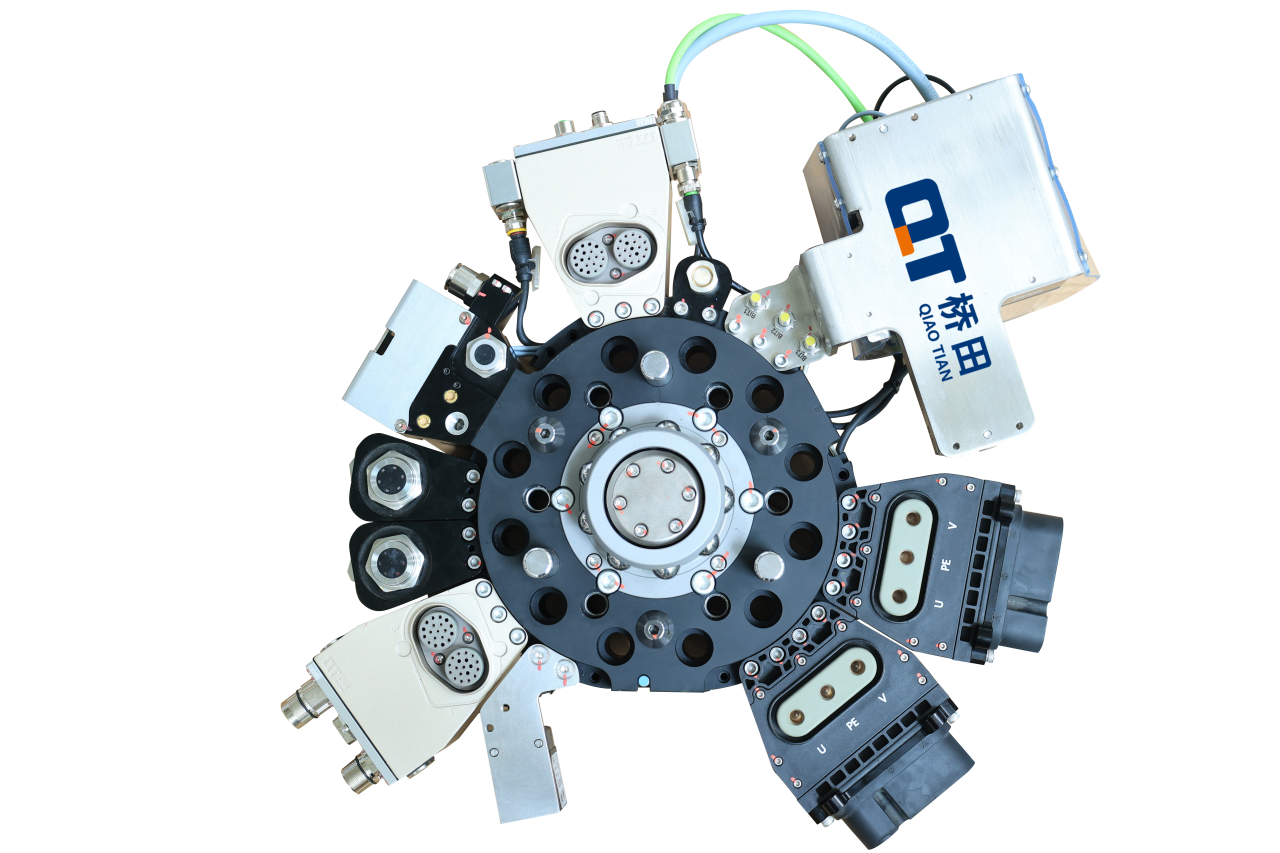

Body‑in‑white welding processes are moving from single‑mode welding toward hybrid joining, placing higher demands on the tool changer’s power and signal transmission capabilities. The Qiaotian QT‑650S allows flexible configuration of pneumatic ports, electrical contacts, power contacts, fluid passages, network communication, and industrial bus modules to meet the stringent power, signal, and air‑pressure requirements of SPR, FDS, and similar tools.

This modularity makes the QT‑650S more than a mechanical coupler – it is an expandable robotic end‑of‑arm interface platform that reserves ample room for future line upgrades.

4.Secure locking and status feedback: Certainty is critical in heavy‑load applications

In 800kg‑class heavy tooling, safety is the overriding principle.If a heavy weld gun or gripper were to detach, the consequences would extend beyond equipment damage to potential personnel injury, body‑quality defects, and overall line downtime.

Qiaotian’s tool changer incorporates a dual‑safety locking design combining a safety platform with high‑force spring assistance, along with a patented mechanical anti‑drop structure, ensuring that it remains locked even when air or electrical power is lost. The control safety system of the quick‑change device achieves PL d Cat.3, helping the production line verify status before and after each tool change – substantially reducing inadvertent actions and unscheduled stoppages.

Qiaotian has accumulated extensive experience with heavy‑duty tool‑changer applications across a broad range of automotive welding operations. For our customers, choosing the QT‑650S is not merely selecting a product – it is adopting a  comprehensive heavy‑load tool‑changing solution that encompasses on‑site process support, interface adaptation, commissioning assistance, and after‑sales service.

For any body‑in‑white welding tool‑changer selection, existing‑line upgrade, or import‑replacement need, please contact Qiaotian Intelligent. We will provide a tailored proposal based on your robot model and process interface requirements.
